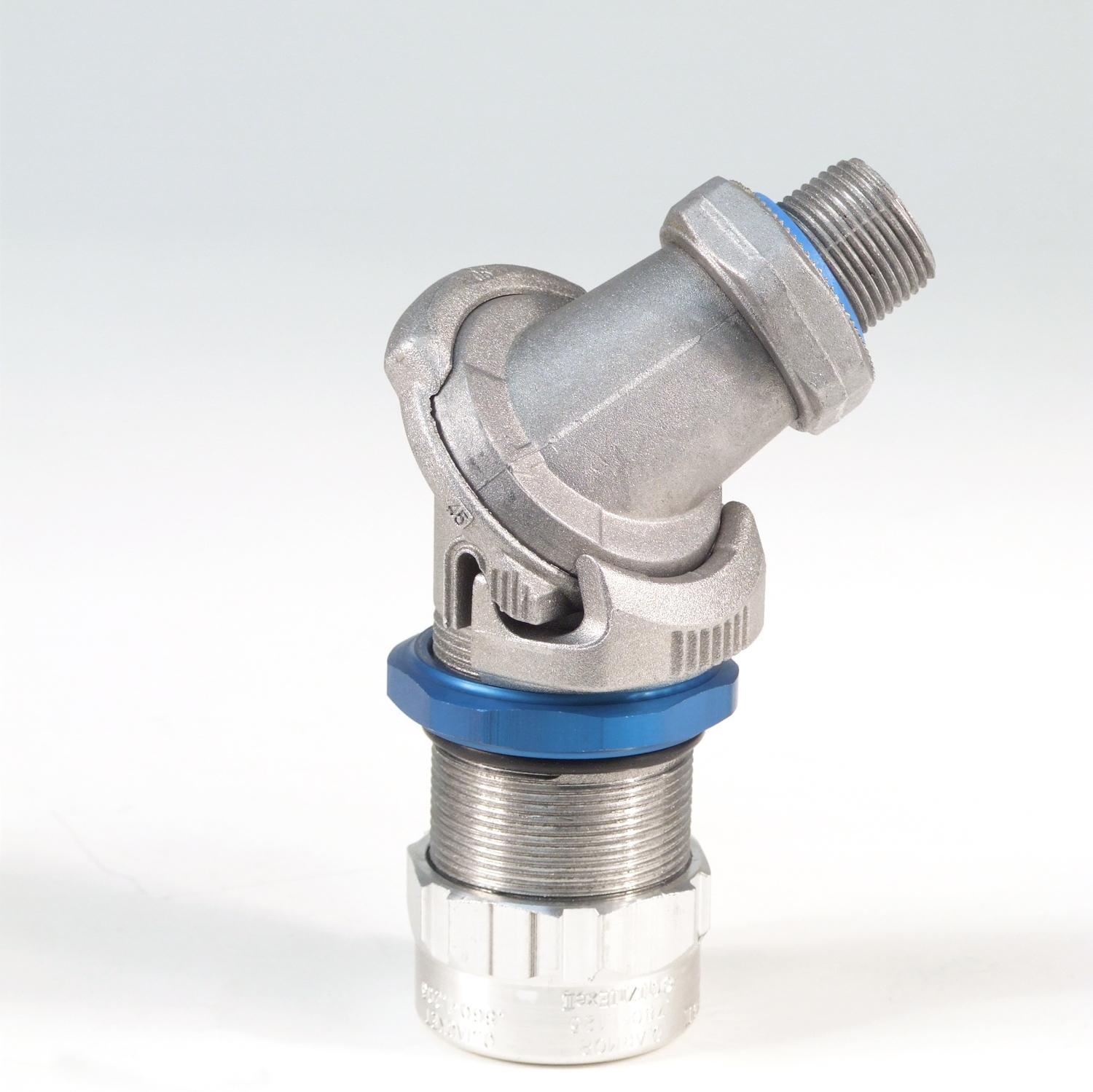

T&B® Fittings Star Teck Extreme Director® STED050 Teck Cable Connector, 1/2 in Trade, 0.6 to 0.885 in Cable Openings, Aluminum
STED050
MFG #: STED050
Requires Quote
Non-Stock Item
- Angle: 90 deg
- Cable Openings: 0.6 to 0.885 in
- Cable Type: MC/Teck
- Color: Dark Silver/Blue
- Connection Type: NPT
- Country of Origin: CA
- Manufacturer Name: ABB
- Material: Aluminum
- Request For Quote: Yes
- Trade Size: 1/2 in
Star teck extreme Director® cable fittings are designed for optimum integrity in ordinary applications. They accept a range of jacketed metal clad and teck cable diameters.
- Standards
- Item Features
- Application
UL File No. E38947|CSA 23086|NEC Certified|Class I Div 2/Zone 2|Class II Div 2/Zone 22|NEMA 4
- Elastomeric collar ring and cone-shaped busing provide a liquidtight seal and insulation grip
- Stainless steel power grip grounding ring ensures 360 deg long term, dependable grounding
- Removable armor stop makes the fitting range taking
- The fitting's body and gland nut have been constructed completely of non-corrosive aluminum
- Gland nut serves as a cable stripping gauge
- Low profile gland nut fits in tight spaces, includes grooves for screwdriver installation and flats for a wrench
- Teeth on the fitting's perimeter provide superior electrical bonding
- Built-in sealing gasket provides a 360 deg seal even when enclosure surface is rough or uneven
- No disassembly prior to installation and easily disconnected
- Provides means for passing armored, metal clad, jacketed cable through an enclosure
- Provide grounding continuity of cable armor
- Form a mechanical grip and water and/or oil-resistant seal for cord
- 450 in-lb gland torque
- 0.52 to 0.795 in cable range over armor
- 0.505 in throat diameter with end stop
- 0.617 in throat diameter without end stop
- https://www.youtube.com/watch?v=rr_o3Msfvro
Ordinary Locations
