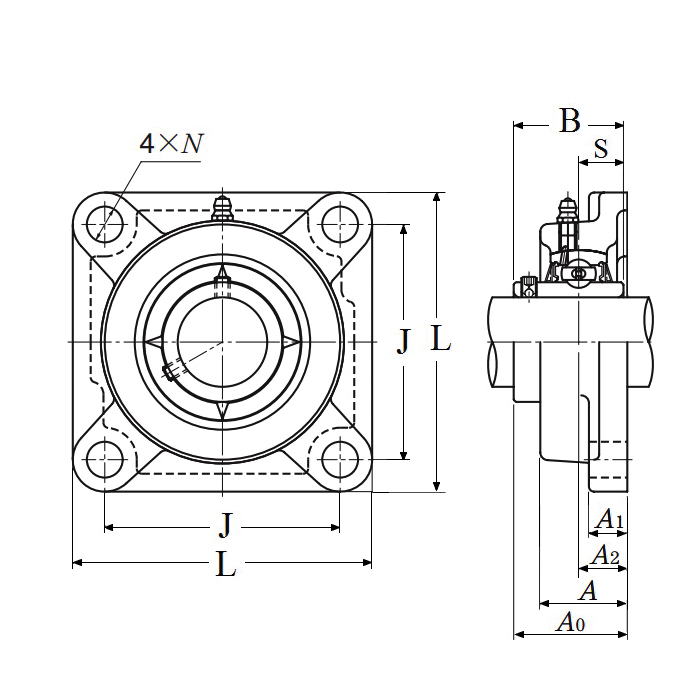

NTN UCF206-103D1 1-Piece Light Duty Ball Bearing Unit, 30.163 mm Dia Bore, 83 mm L Bolt Center-to-Center, 83 mm Dia Bolt Circle, 4-Bolt Square Flange Mount, 108 mm OAL/Dia

UCF206-103D1-NTN MFG #: UCF206-103D1
$63.39 / EA
  • Manufacturer: NTN
  • Type: Light Duty
  • Bore Diameter: 1.1875 in/30.163 mm
  • Bolt Circle Diameter: 3.2656 in/83.0 mm
  • Overall Length/Diameter: 4.2500 in/108.0 mm
  • Locking Device: Set Screw
  • Seal Material: Nitrile Rubber
  • Load Capacity: 4400 lbf
  • Maximum Speed: 4900 rpm
  • Temperature Rating: 120 ºC
  • Brand: NTN
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: UCF2, 30.163 mm Bore, 83 mm Bolt Center-to-Center Length, 83 mm Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 108 mm Overall Length/Diameter, 40.2 mm Overall Depth, 108 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 19500 N Dynamic/11300 N Static Load, 4900 rpm Maximum, -40 to 120 deg C
QTY
  • Relubricatable
  • Contact seal
  • Cast iron housing
Relubricatable
Contact seal
Cast iron housing
