NTN Bearings

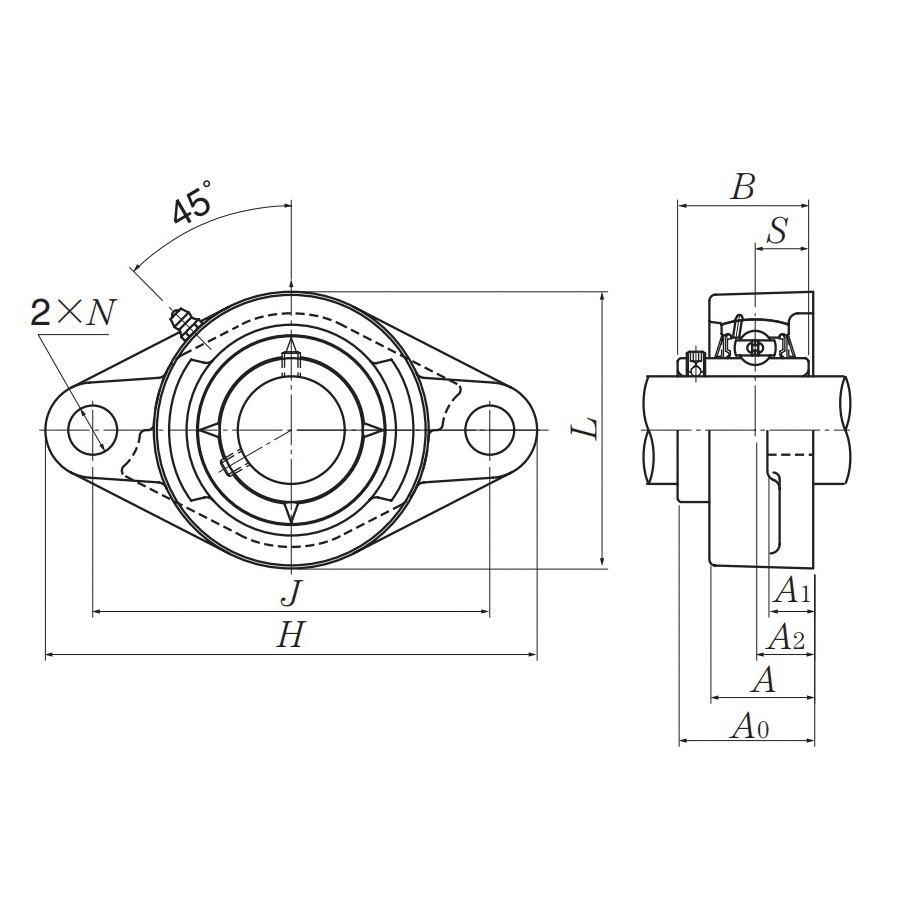

NTN UCFL206-103D1 1-Piece Light Duty Ball Bearing Unit, 30.163 mm Dia Bore, 117 mm L Bolt Center-to-Center, 117 mm Dia Bolt Circle, 2-Bolt Rhombus Flange Mount, 148 mm OAL/Dia

UCFL206-103D1-NTN MFG #: UCFL206-103D1
$59.28 / EA
  • Manufacturer: NTN
  • Type: Light Duty
  • Bore Diameter: 1.1875 in/30.163 mm
  • Bolt Circle Diameter: 4.6094 in/117.000 mm
  • Overall Length/Diameter: 5.8125 in/148.0 mm
  • Locking Device: Set Screw
  • Seal Material: Nitrile Rubber
  • Load Capacity: 4400 lbf
  • Maximum Speed: 4900 rpm
  • Temperature Rating: 120 ºC
  • Brand: NTN
  • Outside Diameter: 3.1562 in/80.0 mm
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: UCFL2, 30.163 mm Bore, 117 mm Bolt Center-to-Center Length, 117 mm Diameter Bolt Circle, 2-Bolt Rhombus Flange Mounting, 148 mm Overall Length/Diameter, 40.2 mm Overall Depth, 80 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 19500 N Dynamic/11300 N Static Load, 4900 rpm Maximum, -40 to 120 deg C
QTY
  • Relubricatable
  • Contact seal
  • Cast iron housing
Relubricatable
Contact seal
Cast iron housing
