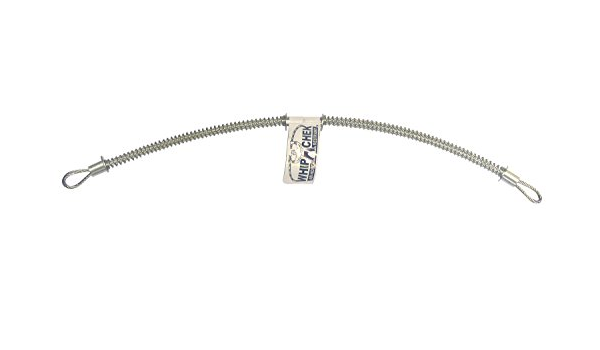

WB1 1/8in Cable 1/2in-11/4in Size Hose

WB1
$4.96 / EA
In Stock
WB1 1/8in Cable 1/2in-11/4in Size Hose
  • CPN_OnContract_Manual: 172310
  • CustomerPartNumber: 100078, 100084, 100141, 100247, 100457, 100715, 100985, 101067, 101079, 126272, 126704, 137197, 137198, 152969, 153379, 154329, 155011, 155995, 169659, 172310, 174266, 176851
  • Request For Quote: No
  • CPN_ContractNo_Manual: 7286
20 1/4in Long Style W - Whip-S,WR1822-22-33170822
QTY
Add to List
  • Details
  • Attribute
Applications
  • When hose, couplings or clamps fail, or there is an accidental separation of the assembly, King safety cables minimize damage to equipment and injuries to operators.
Construction
  • Wire Rope: Galvanized Carbon Steel
  • Ferrules: Aluminum/li>
  • Springs: Galvanized Carbon Steel/li>
Features
  • King cable is the low cost answer to eliminate injuries caused by broken air hose connections
  • King safety cable reaches across the hose fittings to provide standby safety for hose. Spring-loaded loops in the cable ends open easily to pass over the couplings for a firm grip on the hose.
  • Thoroughly tested with years of service. A positive safeguard for air hose connections - helps you meet today's safety standards.
  • Highly resistant to rust and corrosion
Installation
  • Must be installed in the extended position (no slack)
  • No tools needed - easy to install and remove
Note
  • Cables are shipped with safety restraint labels attached
Safety Notes
  • King Safety cable must be installed in the extended position (no slack)
  • The Canada Occupational Safety and Health regulations Part XIII, 13:6b states: "Where an air hose is connected to a portable air powered tool used by an employee, a restraining device shall be attached to all hose connections, in order to prevent injury to an employee in the even of an accidental disconnection of a hose."
Maximum Operating Pressure 200 PSI
Weight 0.2 lb
Break Quantity 0
Optional Package/Box Quantity 1
Size 1/8" cable (3 mm)
Material Galvanized Carbon Steel
Length 20-1/4" (515 mm)
Hose ID 1/2" to 1-1/4" (13 mm to 32 mm)
